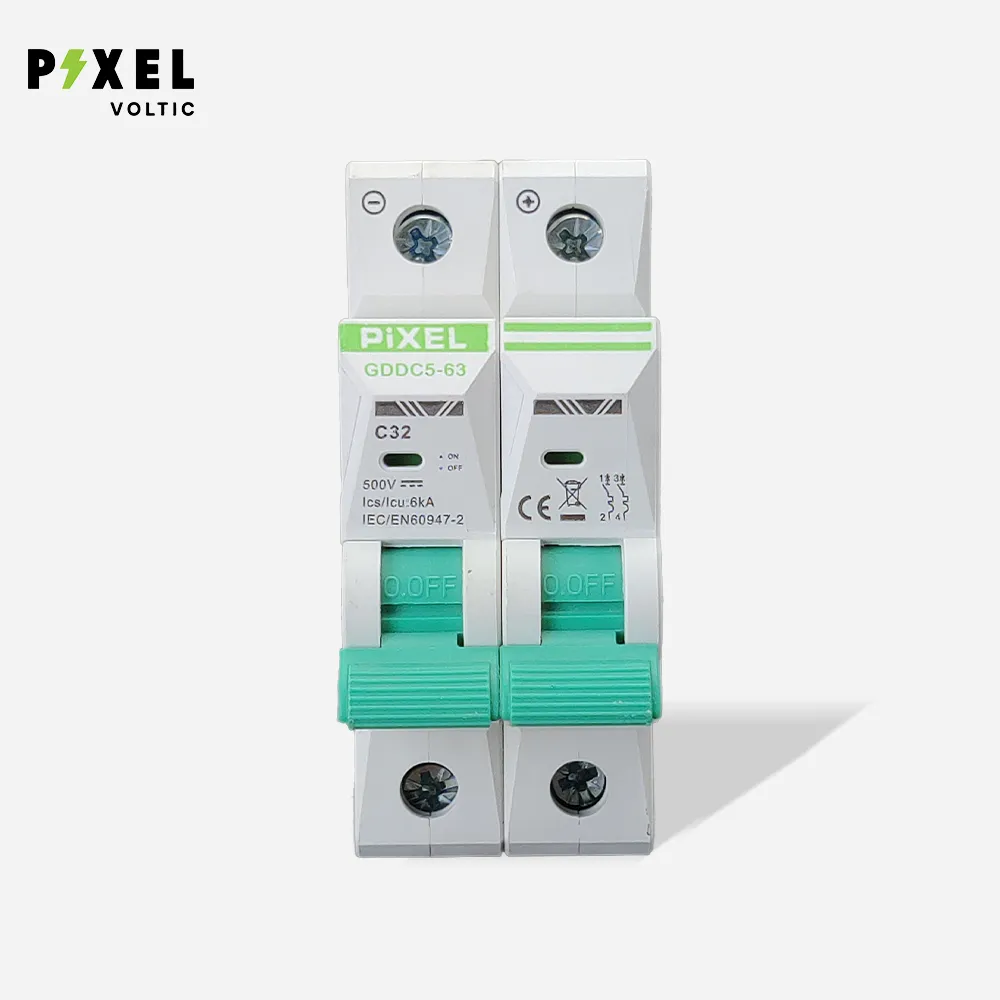

Pixel 2P DC MCB 32A Breaker (500V)
The Pixel 2P DC MCB 32A Breaker (500V) is a direct-current miniature circuit breaker designed for compatible DC electrical systems. With a 2-pole configuration, 32A current rating, and 500V DC rating, it provides a practical circuit protection solution for suitable DC power applications.
DC circuit breakers are an important part of electrical protection because direct-current circuits can behave differently from AC circuits when an overcurrent condition occurs. For this reason, a breaker intended specifically for DC applications should be selected for DC systems rather than assuming that a conventional AC MCB is suitable.
The Pixel 2P DC MCB 32A Breaker (500V) can be considered for applications such as compatible solar photovoltaic circuits, DC distribution systems, battery-related installations, and other suitable DC electrical applications. Actual suitability depends on the system voltage, current, circuit configuration, fault conditions, and manufacturer’s specifications.
What Is a DC MCB?
A DC MCB, or Direct Current Miniature Circuit Breaker, is a protective switching device designed to help protect DC electrical circuits against excessive current.
An MCB can interrupt a circuit when an overcurrent condition occurs, helping reduce the risk of damage to wiring and connected equipment. It can also provide a convenient means of circuit isolation when used according to the requirements of the electrical installation.
DC MCBs are specifically designed for direct-current applications. Their electrical characteristics and interruption capability are selected according to DC operating conditions.
The Pixel 2P DC MCB 32A Breaker (500V) is therefore intended for compatible DC systems where its rated voltage and current are appropriate.
Understanding the 2P Configuration
The 2P designation means the breaker has a two-pole configuration.
A 2-pole DC MCB can be used in suitable DC circuit arrangements where switching or protection of two conductors is required. The exact connection method depends on the electrical system and the manufacturer’s wiring instructions.
Correct polarity and terminal connections are particularly important in DC installations. Installers should always follow the specific wiring diagram and connection requirements supplied with the product.
32A Current Rating
The 32A rating identifies the nominal current rating of the breaker.
This rating is an important consideration when selecting protection for a DC circuit. The MCB should be selected according to the circuit conductor capacity, connected load, system design, and applicable electrical requirements.
A 32A MCB should not automatically be installed simply because the connected equipment has a current close to 32A. Proper circuit protection requires coordination between the breaker, wiring, load, and expected operating conditions.
500V DC Rated Voltage
The 500V specification identifies the rated DC voltage of this product as provided in the product name.
Voltage compatibility is one of the most important factors when selecting a DC circuit breaker. The breaker must be suitable for the actual operating voltage of the electrical circuit.
The 500V rating makes this type of breaker relevant to suitable higher-voltage DC applications, including certain solar and photovoltaic installations, provided the complete system remains within the breaker’s specified electrical limits.
Always verify the manufacturer’s technical documentation before installation.
DC Circuit Protection
Electrical circuits can experience overcurrent conditions due to faults, wiring problems, equipment failures, or other abnormal operating conditions.
A correctly selected DC MCB can help interrupt an affected circuit when the current exceeds the appropriate protection characteristics.
This can help reduce the possibility of excessive current damaging wiring or connected equipment.
The Pixel 2P DC MCB 32A Breaker should be treated as one component within a complete electrical protection system. It does not replace appropriate system design, fusing where required, surge protection, isolation, grounding, or other protective measures.
Applications of Pixel 2P DC MCB 32A Breaker
Solar Photovoltaic Systems
Solar photovoltaic systems commonly contain DC circuits between solar panels and other components such as charge controllers, inverters, combiner equipment, or DC distribution equipment.
A suitable DC MCB can be used as part of the protection arrangement for compatible PV circuits.
The Pixel 2P DC MCB 32A Breaker (500V) may be considered for suitable solar applications where its voltage, current, pole configuration, and other specifications match the system requirements.
DC Distribution Systems
DC distribution boards and electrical panels may require circuit breakers to provide protection and isolation for individual circuits.
A 2-pole 32A DC MCB can provide a compact protection solution for compatible circuits.
The actual application must be determined by the electrical system design and manufacturer’s specifications.
Battery Systems
Battery installations can contain DC circuits requiring appropriate overcurrent protection.
The correct breaker must be selected according to the battery-system voltage, available fault current, cable capacity, and system configuration.
The Pixel 2P DC MCB 32A Breaker may be suitable for certain battery-related applications when all electrical requirements are satisfied.
Control and Industrial DC Circuits
Industrial equipment and control systems can include DC power circuits. A DC MCB can help provide protection for compatible branch circuits and equipment.
Before installation, users should confirm that the breaker is appropriate for the specific voltage, current, fault level, and application.
Benefits of a 2P DC MCB
Dedicated DC Protection
A DC-rated MCB is designed for the specific characteristics of direct-current electrical circuits.
32A Circuit Rating
The 32A rating provides a defined reference for selecting the breaker according to the requirements of a compatible circuit.
500V DC Application
The 500V rating allows the product to be considered for suitable DC systems operating within the specified voltage limits.
Two-Pole Configuration
The 2P design provides two poles for compatible DC circuit arrangements.
Circuit Isolation
An MCB can also provide a convenient switching and isolation function when used as intended and according to applicable safety procedures.
Why Use a DC MCB Instead of an AC MCB?
AC and DC electrical systems have different characteristics.
Alternating current naturally passes through zero during each cycle, which can help an AC circuit breaker interrupt an electrical arc. Direct current does not have the same periodic zero crossing.
Because of this difference, DC circuit breakers require suitable designs for interrupting DC current.
Using a breaker specifically rated for DC applications is therefore important when protecting a DC circuit.
The Pixel 2P DC MCB 32A Breaker (500V) is intended for compatible DC applications rather than being treated as a general AC circuit breaker.
Selecting the Correct DC MCB
Several factors should be evaluated before selecting a DC MCB.
System Voltage
The breaker must have an appropriate DC voltage rating for the electrical system.
Current Rating
The MCB current rating should be coordinated with the expected load and cable capacity.
Number of Poles
The pole configuration should match the requirements of the DC circuit.
Fault Current
The available short-circuit or fault current should be considered when evaluating the breaker.
Application
Solar PV, battery, industrial, control, and other DC applications can have different protection requirements.
Manufacturer Specifications
Always verify the complete technical specification before installation.
Solar Applications
The Pixel 2P DC MCB 32A Breaker (500V) can be particularly relevant to searches for 32A 500V DC MCBs for solar systems.
Photovoltaic installations require protection equipment that is specifically appropriate for their DC operating conditions. Depending on the system design, DC MCBs can be used in solar distribution or protection arrangements.
The exact position of the breaker in a PV system depends on the system architecture and applicable installation requirements.
Users should confirm the maximum PV voltage, expected operating current, fault conditions, and required protective devices before selecting a breaker.
DC Protection in Photovoltaic Installations
Solar panels can continue producing electrical energy when exposed to suitable light, meaning certain parts of a PV system may remain energized even when other equipment has been switched off.
This makes correct DC isolation and protection particularly important.
A suitable DC MCB can contribute to the protection and isolation arrangement, but it must be installed correctly and coordinated with other components.
For larger or professionally installed solar systems, the complete protection design should be evaluated by a qualified electrical professional.
Installation Considerations
Correct installation is essential for reliable operation.
Before installing the Pixel 2P DC MCB 32A Breaker (500V), verify:
- DC system voltage
- Circuit operating current
- Breaker current rating
- Pole configuration
- Polarity
- Terminal arrangement
- Cable size and capacity
- Available fault current
- Installation environment
- Manufacturer’s wiring instructions
Connections should be tightened and completed according to the manufacturer’s specified requirements.
Do not guess terminal polarity or wiring configuration.
Safe Electrical Installation
DC electrical circuits can present significant electrical hazards.
Installation and servicing should be performed by a qualified person where required by local electrical regulations.
Before working on a DC circuit, appropriate isolation procedures should be followed. In solar and battery installations, additional precautions may be necessary because circuits can remain energized under certain conditions.
Never rely solely on the MCB as the only means of ensuring a circuit is safe to work on.
Coordination With Other Protection Devices
A DC MCB is normally part of a wider electrical protection system.
Depending on the installation, other components may include:
- DC isolators
- Fuses
- Surge protection devices
- Grounding or earthing systems
- AC circuit breakers
- Residual-current protection where applicable
- Monitoring equipment
- Other system-specific protection
The complete protection arrangement should be designed so that individual protective devices operate appropriately with the connected equipment.
Maintenance and Inspection
Regular inspection can help maintain the reliability of the electrical installation.
Users should look for visible damage, discoloration, overheating, loose connections, unusual smells, or other signs of abnormal operation.
If the breaker trips repeatedly, the cause should be investigated rather than repeatedly resetting the device without determining why the trip occurred.
Frequent tripping may indicate an overload, short circuit, equipment problem, or an incorrectly selected protection device.
Importance of Correct Breaker Selection
Selecting an MCB solely based on its 32A rating is not sufficient.
The breaker must be compatible with the actual electrical system and application. Voltage rating, interruption capability, pole arrangement, circuit characteristics, and installation requirements all matter.
For a 500V DC application, users should verify that the complete breaker specification supports the intended operating conditions.
This helps ensure that the protective device is appropriately matched to the circuit.
Pixel 2P DC MCB 32A Breaker for Modern DC Systems
The Pixel 2P DC MCB 32A Breaker (500V) provides a dedicated DC circuit protection option for compatible electrical installations.
Its combination of 2-pole configuration, 32A current rating, and 500V DC rating makes it suitable for consideration in appropriate DC applications where these specifications meet the system requirements.
It can be useful in applications requiring compact DC circuit protection, including suitable solar photovoltaic, battery, distribution, control, and other DC electrical systems.
Product Selection and Professional Use
Before purchasing or installing this breaker, users should confirm all relevant technical specifications.
The product name provides the primary information of 2P, 32A, and 500V DC, but other characteristics may also be important, such as breaking capacity, trip characteristics, terminal specifications, environmental ratings, and applicable standards.
These details should be verified from the manufacturer’s documentation rather than assumed from the product name.
Final Thoughts
The Pixel 2P DC MCB 32A Breaker (500V) is designed for compatible direct-current electrical circuits requiring miniature circuit breaker protection.
With its 2-pole configuration, 32A rating, and 500V DC rating, it can be considered for suitable DC applications such as solar photovoltaic systems, DC distribution, battery installations, and other compatible electrical circuits.
Choosing the correct DC MCB requires careful consideration of system voltage, operating current, fault conditions, wiring, pole configuration, and the complete protection design.
For safe and reliable operation, the Pixel 2P DC MCB 32A Breaker should be installed according to the manufacturer’s instructions and applicable electrical requirements by a suitably qualified professional.
