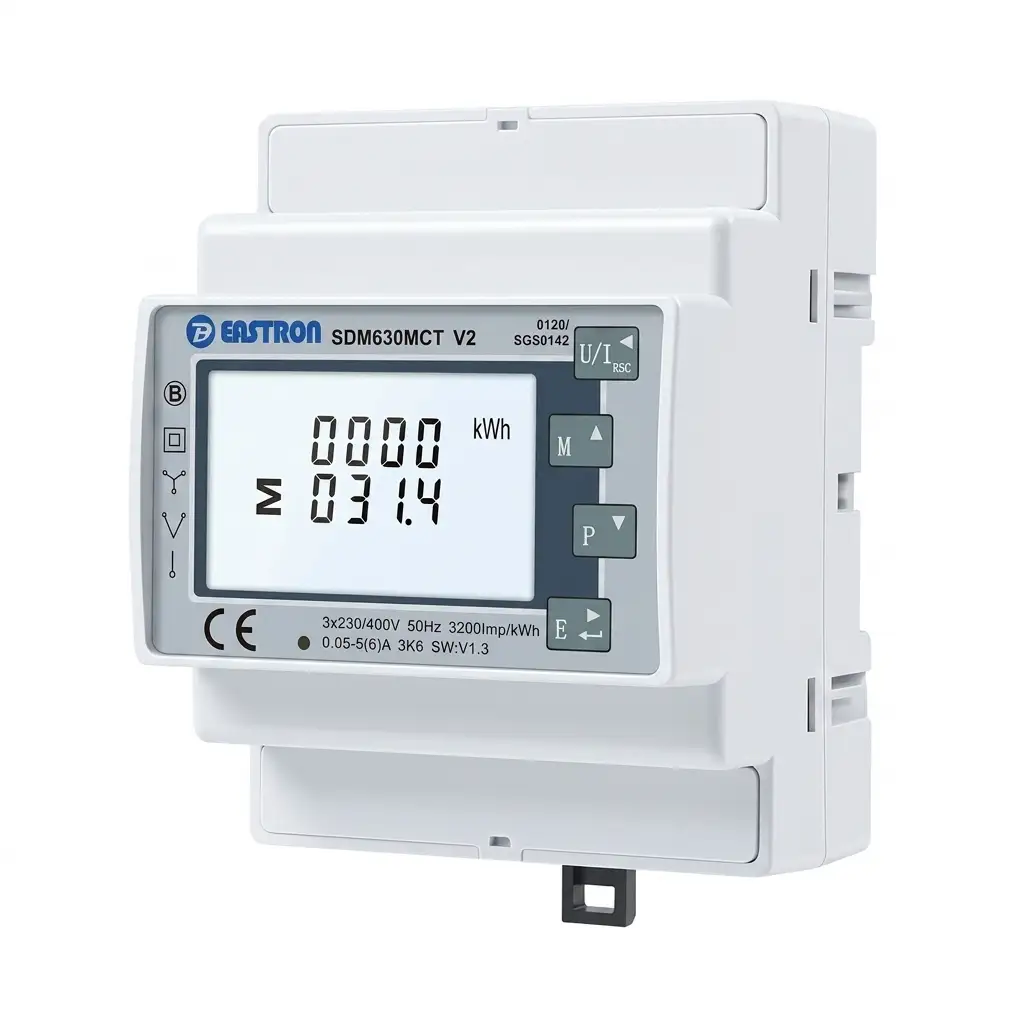

EASTRON SDM630MCT V2 Export Device| EASTRON SDM630MCT V2 Export Meter for KNOX 30kW to 60kW Inverters Pakistan is a professional-grade three-phase CT-operated smart energy meter designed for large commercial and industrial solar systems. It is specifically engineered for zero export control, advanced energy monitoring, and intelligent power management with KNOX hybrid and on-grid solar inverters ranging from 30kW to 60kW in Pakistan.
EASTRON SDM630MCT V2 Export Device | EASTRON SDM630MCT V2 Export Meter for KNOX 30kW to 60kW Inverters Pakistan uses advanced RS485 Modbus RTU communication technology to provide highly accurate bi-directional energy monitoring between solar systems and the utility grid. The device continuously measures imported and exported electricity and communicates with compatible KNOX solar inverters to enable zero export functionality, export limitation, and optimized solar power control.
The SDM630MCT V2 is a DIN rail mounted multifunction three-phase energy meter designed for commercial solar installations, industrial energy management systems, factories, offices, warehouses, shopping malls, and high-capacity solar power systems. It supports three-phase four-wire (3P4W), three-phase three-wire (3P3W), and single-phase two-wire (1P2W) electrical systems, making it highly flexible for different installation requirements.
One of the biggest advantages of the EASTRON SDM630MCT V2 Export Device | EASTRON SDM630MCT V2 Export Meter for KNOX 30kW to 60kW Inverters Pakistan is its CT-operated design. Unlike direct connection energy meters, this model works with external current transformers (CTs), allowing accurate measurement of high-current industrial electrical systems. The device supports both 1A and 5A CT inputs with configurable CT primary values from 1A up to 9999A, making it suitable for large-scale commercial solar systems.
The device is specially recommended for KNOX 30kW to 60kW hybrid and grid-tie solar inverter systems where export control and utility compliance are required. It continuously monitors electricity flow between the solar system and the utility grid, allowing the inverter to dynamically adjust power generation according to site load demand. This helps prevent excess solar energy export to the utility grid where zero export regulations apply.
The EASTRON SDM630MCT V2 features advanced bi-directional energy measurement capability for both imported and exported electricity. It measures active energy (kWh), reactive energy (kVarh), active power (kW), reactive power (kVar), apparent power (kVA), voltage, current, frequency, demand, and power factor. These advanced measurements provide complete visibility into solar system performance and facility energy usage.
The built-in RS485 Modbus RTU communication interface allows seamless integration with KNOX hybrid solar inverters, industrial automation systems, SCADA systems, PLC controllers, building management systems, and smart monitoring platforms. This communication system enables real-time energy monitoring and intelligent inverter control for commercial solar applications.
The device supports transmission distances up to 1000 meters through RS485 communication, making it suitable for large industrial facilities and distributed solar installations. Communication speed is configurable from 1200bps to 38400bps with selectable parity and stop-bit settings for flexible system integration.
One of the key applications of the EASTRON SDM630MCT V2 Export Device | EASTRON SDM630MCT V2 Export Meter for KNOX 30kW to 60kW Inverters Pakistan is zero export solar systems. Many industrial and commercial facilities require zero export operation to comply with local utility regulations or avoid unauthorized electricity injection into the utility grid. This device accurately measures exported power and sends real-time data to the inverter to control solar generation accordingly.
The meter is MID-certified and ETL-certified, ensuring high measurement accuracy and international quality standards for professional energy management applications. It offers Class 0.5S and Class 1 accuracy ratings depending on application requirements, making it suitable for commercial energy monitoring and sub-metering systems.
The EASTRON SDM630MCT V2 includes two programmable pulse outputs for integration with external monitoring equipment, data loggers, and industrial energy management systems. These pulse outputs can be configured for active or reactive energy measurements according to project requirements.
The device features a high-definition LCD display that allows users to monitor real-time electrical parameters directly from the meter. Users can easily view voltage, current, power factor, imported energy, exported energy, and total system consumption without additional equipment.
The compact DIN rail mounted design allows easy installation inside industrial electrical panels, solar combiner boxes, and commercial distribution boards. The device occupies only 4 DIN modules with a compact 72mm width, making it suitable for modern commercial electrical systems.
The EASTRON SDM630MCT V2 is manufactured using industrial-grade components designed for continuous operation in harsh environmental conditions including high temperatures, dust, humidity, and electrical noise commonly found in Pakistan’s industrial and commercial sectors.
Professional solar installers widely use this export device with KNOX, Deye, Solis, Growatt, and other advanced solar inverter systems requiring reliable Modbus energy metering and export control. Some Pakistani solar suppliers specifically recommend the SDM630MCT V2 for KNOX, Solis, and Growatt commercial systems.
Online technical discussions among solar professionals also confirm compatibility between Eastron SDM630 Modbus meters and large commercial inverter systems for advanced monitoring and automation applications.
The device supports password-protected configuration settings for secure system operation and prevention of unauthorized parameter changes. This improves operational security and reliability for industrial solar installations.
At Asbaab.pk, we provide 100% original EASTRON SDM630MCT V2 Export Devices for KNOX 30kW to 60kW solar inverter systems across Pakistan. Our products are trusted by solar installers, industrial users, EPC contractors, and commercial energy solution providers for quality, compatibility, and performance.
We also offer nationwide delivery and technical support for installation guidance, inverter compatibility, Modbus configuration, and after-sales service. Every device is tested before dispatch to ensure reliable performance and customer satisfaction.
EASTRON SDM630MCT V2 Export Device | EASTRON SDM630MCT V2 Export Meter for KNOX 30kW to 60kW Inverters Pakistan is a highly accurate, durable, and professional energy monitoring solution for modern industrial solar systems, zero export applications, and commercial solar energy management in Pakistan.
